Viewer 2D/3D XML

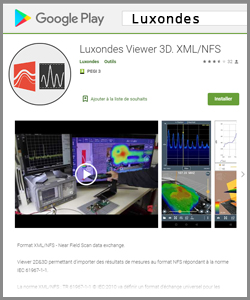

Download Luxondes Free Android Viewer on your smartphone from the play store.

2D & 3D viewer for importing measurement results in NFS format meeting standard IEC 61967-1-1.

The XML / NFS standard: TR 61967-1-1 © IEC: 2010 will define a universal exchange format for data coming from different near-field scanners.

Its format is suitable for different 2D or 3D coordinate systems for a frequency or temporary domain.

This viewer also allows you to import measurements from the CST simulation software. The format is .ffs (Far Field Source).

This makes it possible to compare measurement and simulation in the same application.
It is also possible to import object models in .obj format from CAD software such as 3DSMax or 3D scanners.



Lien

Android Application (10)

XML data analysis

Scanphone (single sensor or frequency WLG)

Gyroscanphield 3D

Simulation (CST) .ffs

Object .obj

Download examples with the application's Qrcode function

  • .lxd = .zip = config.xml + data.dat + picture.jpg
  • Scanphone + Sensor / + Wifi Spectrum analyser, Gyroscanphield
  • Simulation .ffs

Scan the QRCode
corresponding
to the examples below.

2D / 3D XML
Data examples

The QR-Code function present in the application allows you to directly download your measurement results in the viewer. Below are some examples to download.

Frequency mapping

  • Format Data : .LXD
  • Measurement system : Scanphone
  • Sensor : Loop antenna
  • Frequency : FM band
  • Spectrum : FPC1000 R&S



Frequency mapping

  • Format Data : .LXD
  • Measurement system : Scanphone
  • Sensor : Loop antenna
  • Frequency : 8 – 10 MHz
  • Spectrum : FPC1000 R&S



Low frequency radiation comparison

  • Format Data : .LXD
  • Measurement system : Scanphone
  • Sensor : G02
  • Frequency : < 400 MHz
  • Information : Direct comparison



Comparison with and without shielding

  • Format Data : .LXD
  • Measurement system : Scanphone
  • Sensor : G02
  • Frequency : < 400 MHz
  • Information : Direct comparison



Wave simulation

  • Format Data : .LXD
  • Measurement system : simulation software
  • Sensor : xx
  • Temporel : µsec
  • Information : Matlab



Measure and Simulation WiFi antenna

  • Format Data : .XML .FFS
  • Measurement system : Gyroscanfield
  • Sensor : S26
  • Frequency : 2.4 GHz
  • Simulation Software : CST



Measuring a iphone at 900 MHz

  • Format Data : .XML
  • Measurement system : Gyroscanfield
  • Sensor : S26
  • Frequency : 900 MHz
  • Object format : .obj



Kinect kangoo photo

  • Format Data : .XML
  • Measurement system : Kinect
  • Sensor : Spectrum analyseur
  • Frequency : 2 GHz
  • Object format : .jpg



Mapping planar inside a vehicle with kinect

  • Format Data : .XML
  • Measurement system : Kinect
  • Sensor : Spectrum analyseur
  • Frequency : 2 GHz
  • Object format : .obj



Mapping planar outside of a train

  • Format Data : .XML
  • Measurement system : Kinect
  • Sensor : Loop antenna
  • Frequency : < 1MHz
  • Information : Select HD and Extend = 0 and Reload Data



Mapping planar outside of a train (3D obj)

  • Format Data : .XML
  • Measurement system : Kinect
  • Sensor : Loop antenna
  • Frequency : < 1MHz
  • Information : Select HD and Extend = 0 and Reload Data



Map the magnetic field of a magnet

  • Format Data : .XML
  • Number of measurement point : 200 000
  • Measurement system : Swing Arm Scanner
  • Sensor : Hall Effect sensor



Tag RFID with Swing arm scanner

  • Format Data : .XML
  • Number of measurement point : 200 000
  • Frequency : 16 MHz
  • Measurement system : Swing Arm Scanner
  • Sensor : S3



Reader NFC 13.56 MHz

  • Format Data : .XML
  • Number of measurement point : 400
  • Measurement system : Swing Arm Scanner
  • Frequency : 13.56 MHz
  • Object format : .obj
  • Viewer : java / android



µP with and without ground plane

  • Format Data : .XML .XML
  • Number of measurement point : 1400
  • Measurement system : Swing Arm Scanner
  • Sensor : Antenna Card C16
  • Frequency : 16 MHz
  • Object format : .obj
  • Viewer : java / android



EM radiation from a screen

  • Format Data : .XML .XML
  • Number of measurement point : 950
  • Measurement system : Swing Arm Scanner
  • Sensor : Spectrum Analyser
  • Frequency : 40.2 MHz
  • Object format : .obj
  • Viewer : java / android



EM radiation a screen (bottom)

  • Format Data : .XML .XML
  • Number of measurement point : 950
  • Measurement system : Swing Arm Scanner
  • Sensor : Spectrum Analyser
  • Frequency : 40.2 MHz
  • Object format : .obj
  • Viewer : java / android



Switch-mode power supply with cover

  • Format Data : .XML
  • Number of measurement point : 200 000
  • Measurement system : Swing Arm Scanner
  • Sensor : S3
  • Frequency : 16 MHz
  • Object format : .obj
  • Viewer : java / android



Dipole antenna

  • Format Data : .OBJ .FFS
  • Object : Double ridge antenna .obj
  • Simulation software : CST
  • Frequency : 2 GHz
  • Viewer : java / android



Horn antenna simulation

  • Format Data : .OBJ .FFS
  • Object : Double ridge antenna .obj
  • Simulation software : CST
  • Frequency : 2 GHz
  • Viewer : java / android
